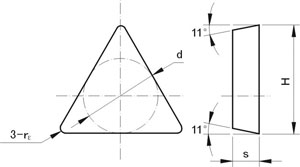

Milling Inserts Type 311
Milling Inserts Type 311
For making end mills,three-edged mills & boring cutters
 |
 |
Type |
Dimension(mm) |
Approx unit weight(g) |
||||||
d |
s |
H |
r |
YG6 |
YG8 |
YT5 |
YT14 |
|
3070551 |
7.4 |
3.3 |
10.6 |
0.5 |
3.1 |
3.0 |
2.7 |
2.4 |
3100511 |
10.5 |
3.8 |
15.2 |
0.5 |
7.1 |
6.9 |
6.2 |
5.7 |
3130511 |
13.5 |
4.8 |
19.7 |
0.5 |
15.8 |
15.5 |
3.6 |
12.3 |
3131011 |
13.5 |
4.8 |
19.7 |
1.0 |
15.6 |
15.3 |
3.2 |
11.9 |
3160511 |
16.5 |
5.8 |
24.2 |
0.5 |
29.0 |
28.4 |
24.9 |
22.1 |
3161011 |
16.5 |
5.8 |
24.2 |
1.0 |
28.8 |
28.2 |
24.2 |
21.3 |
