Indexable Inserts Type 3F
Indexable Inserts Type 3F
For making left & right hand,internal & external turning tools with offset shank and small radial stress, particularly suitable for making thin and long shafts
 |
 |
|

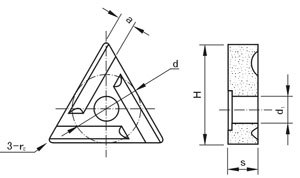

Type
|
Dimension(mm)
|
Approx unit weight(g)
|
||||||||
|
d
|
s
|
r
|
a≈
|
d1
|
H
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
31005F
|
10.0
|
4.5
|
0.5
|
2.4
|
4.2
|
14.5
|
7.0
|
6.8
|
6.2
|
5.5
|
|
31005FL
|
||||||||||
|
31305F
|
13.0
|
5.5
|
0.5
|
3.4
|
5.2
|
19.0
|
15.0
|
14.8
|
12.9
|
11.4
|
|
31305FL
|
||||||||||
|
31310F
|
13.0
|
5.5
|
1.0
|
4.4
|
5.2
|
18.5
|
14.5
|
14.2
|
12.7
|
11.3
|
|
31310FL
|
||||||||||
|
31610F
|
16.0
|
7.0
|
1.0
|
5.4
|
6.2
|
23.0
|
28.4
|
28.0
|
24.3
|
21.5
|
|
31610FL
|
||||||||||
