Indexable Inserts Type CL

Indexable Inserts Type CL Indexable Inserts Type CL Indexable Inserts Type CL

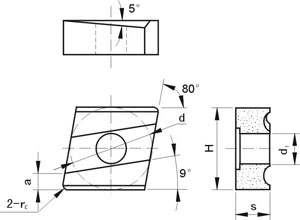

Indexable Inserts Type CL
For making 90°turning,boring and milling tools with small radial force and good chip cut off effect


Type
Dimension(mm)
Approx unit weight(g)
d
s
H
r
a≈
d1
YG6
YG8
YT5
YT14
C1005L
10.0
3.5
10.0
0.5
2.0
4.2
4.2
4.1
3.4
3.0
C1005LL
C1305L
13.0
4.5
13.0
0.5
3.0
5.2
8.7
8.5
7.5
6.6
C1305LL
C1610L
16.0
5.5
16.0
1.0
4.5
6.2
16.0
15.8
13.8
12.2
C1610LL
C1910L
19.0
8.0
19.0
1.0
5.5
7.2
33.0
32.5
29.2
25.9
C1910LL
