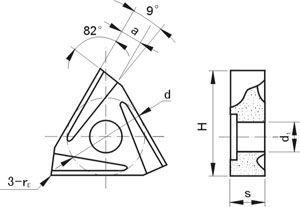

Indexable Inserts Type 3D
Indexable Inserts Type 3D
For making left & right hand,external turning tools and boring tools with offset shank
 |
 |
|
Type
|
Dimension(mm)
|
Approx unit weight(g)
|
||||||||
|
d
|
s
|
r
|
a≈
|
d1
|
H
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
31003D
|
10.0
|
4.5
|
0.3
|
3.4
|
4.2
|
14.0
|
7.5
|
7.3
|
6.3
|
5.6
|
|
31003DL
|
||||||||||
|
31303D
|
13.0
|
5.5
|
0.3
|
4.4
|
5.2
|
18.2
|
15.3
|
15.0
|
13.2
|
11.7
|
|
31303DL
|
||||||||||
|
31603D
|
16.0
|
7.0
|
0.3
|
5.0
|
6.2
|
22.6
|
29.3
|
29.0
|
25.6
|
22.8
|
|
31603DL
|
||||||||||
|
31905D
|
19.0
|
8.5
|
0.5
|
5.7
|
7.2
|
26.0
|
48.5
|
48.0
|
43.4
|
38.6
|
|
31905DL
|
||||||||||
