Indexable Inserts Type 4D
Indexable Inserts Type 4D
For making 75°,45°external and surface turning and boring tools with wide groove,suitable for heavy feed machining
 |
 |
|
Type
|

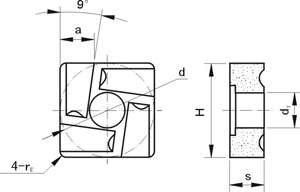

Dimension(mm)
|
Approx unit weight(g)
|
||||||||
|
d
|
s
|
r
|
a≈
|
d1
|
H
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
41305D
|
13.0
|
4.5
|
0.5
|
4.4
|
5.2
|
13.0
|
9.2
|
9.0
|
7.9
|
7.0
|
|
41305D L
|
||||||||||
|
41610D
|
16.0
|
5.5
|
1.0
|
5.5
|
6.2
|
16.0
|
17.2
|
17.0
|
14.7
|
13.0
|
|
41610D L
|
||||||||||
|
41910D
|
19.0
|
7.0
|
1.0
|
6.8
|
7.2
|
19.0
|
31.0
|
30.6
|
26.4
|
23.5
|
|
41910D L
|
||||||||||
