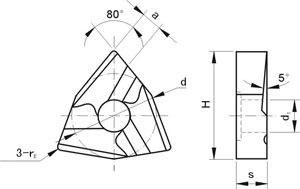

Indexable Inserts Type T3F
Indexable Inserts Type T3F
For making left & right hand,internal & external end face turning tools and planing tools with offset shank
 |
 |
|
Type
|
Dimension(mm)
|
Approx unit weight(g)
|
||||||||
|
d
|
s
|
r
|
a≈
|
d1
|
H
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
T31005F
|
10.0
|
3.5
|
0.5
|
2.4
|
4.2
|
12.6
|
4.2
|
4.2
|
3.7
|
3.3
|
|
T31005FL
|
||||||||||
|
T31305F
|
13.0
|
4.5
|
0.5
|
3.4
|
5.2
|
16.4
|
9.2
|
9.1
|
7.9
|
7.0
|
|
T31305FL
|
||||||||||
|
T31605F
|
16.0
|
5.5
|
0.5
|
4.4
|
6.2
|
20.3
|
17.2
|
17.0
|
14.6
|
13.0
|
|
T31605FL
|
||||||||||
|
T31905F
|
19.0
|
7.0
|
0.5
|
5.4
|
7.2
|
24.2
|
30.8
|
30.5
|
26.8
|
23.8
|
|
T31905FL
|
||||||||||
