Indexable Inserts Type 4A

Indexable Inserts Type 4A Indexable Inserts Type 4A Indexable Inserts Type 4A

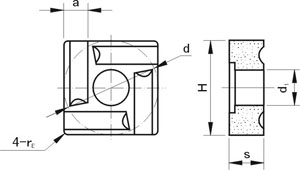

Indexable Inserts Type 4A
For making left & right hand,internal & external end face turning tools with offset shank


Type
Dimension(mm)
Approx unit weight(g)
d
s
r
a≈
d1
H
YG6
YG8
YT5
YT14
41005A
10.0
3.5
0.5
2.4
4.2
10.0
4.3
4.2
3.6
3.2
41005AL
41305A
13.0
4.5
0.5
3.4
5.2
13.0
9.6
9.4
7.9
7.0
41305AL
41315A
13.0
4.5
1.5
3.4
5.2
13.0
9.4
9.2
7.6
6.8
41315AL
41605A
16.0
5.5
0.5
4.4
6.2
16.0
17.4
17.2
15.0
13.3
41605AL
41905A
19.0
7.0
0.5
5.4
7.2
19.0
31.0
30.5
27.4
24.3
41905AL
