Tungsten carbide inserts

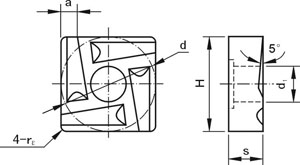

Indexable Inserts Type 4F
Indexable Inserts Type 4F
For making left & right hand,internal & external turning tools with offset shank and small radial stress,suitable for machining thin and long shafts
 |
 |
|
Type
|
Dimension(mm)
|
Approx unit weight(g)
|
||||||||
|
d
|
s
|
r
|
a≈
|
d1
|
H
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
41005F
|
10.0
|
3.5
|
0.5
|
2.4
|
4.2
|
10.0
|
4.1
|
4.0
|
3.4
|
3.0
|
|
41005FL
|
||||||||||
|
41305F
|
13.0
|
4.5
|
0.5
|
3.4
|
5.2
|
13.0
|
8.9
|
8.7
|
7.7
|
6.8
|
|
41305FL
|
||||||||||
|
41605F
|
16.0
|
5.5
|
0.5
|
4.4
|
6.2
|
16.0
|
16.3
|
16.0
|
14.4
|
12.8
|
|
41605FL
|
||||||||||
|
41905F
|
19.0
|
7.0
|
0.5
|
5.4
|
7.2
|
19.0
|
30.0
|
29.5
|
26.4
|
23.5
|
|
41905FL
|
||||||||||
