Tungsten carbide inserts

Indexable Inserts Type 3N

Indexable Inserts Type 3N Indexable Inserts Type 3N Indexable Inserts Type 3N

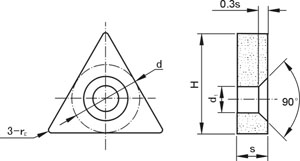

Indexable Inserts Type 3N
For making end mills with tool holder,drills with coolant channels,core drills


Type
Dimension(mm)
Approx unit weight(g)
d
s
r
d1
H
YG6
YG8
YT5
YT14
31005N
10.0
4.5
0.5
4.2
14.5
7.7
7.5
6.6
5.9
31305N
13.0
5.5
0.5
5.2
19.0
15.8
15.6
13.5
12.0
31605N
16.0
7.0
0.5
6.2
23.5
30.9
30.1
26.9
23.9
31910N
19.0
8.5
1.0
7.2
27.5
52.0
51.0
45.7
40.6
