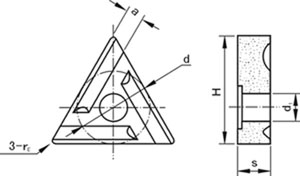

Indexable Inserts Type 3A
Indexable Inserts Type 3A
For making left & right hand,external turning tools and boring tools with offset shank.
 |
 |
|
Type
|
Dimension(mm)
|
Approx unit weight(g)
|
||||||||
|
d
|
s
|
r
|
a≈
|
d1
|
H
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
31005A
|
10.0
|
4.5
|
0.5
|
2.4
|
4.2
|
14.5
|
7.5
|
7.4
|
6.4
|
5.7
|
|
31005AL
|
||||||||||
|
31305A
|
13.0
|
5.5
|
0.5
|
3.4
|
5.2
|
19.0
|
15.7
|
15.5
|
13.4
|
11.9
|
|
31305AL
|
||||||||||
|
31605A
|
16.0
|
7.0
|
0.5
|
4.4
|
6.2
|
23.5
|
30.0
|
29.7
|
26.1
|
23.2
|
|
31605AL
|
||||||||||
|
31905A
|
19.0
|
8.5
|
0.5
|
5.4
|
7.2
|
28.0
|
52.0
|
51.0
|
44.6
|
39.6
|
|
31905AL
|
||||||||||
