Indexable Inserts Type CH

Indexable Inserts Type CH Indexable Inserts Type CH Indexable Inserts Type CH

Indexable Inserts Type CH
For making 90°,75°turning and boring tools,suitable for roughing or semi-finishing of bearing and parts with holes due to long cutting edge and wide edge angle

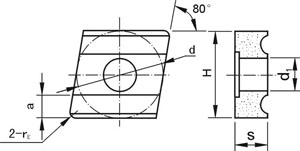

Type
Dimension(mm)
Approx unit weight(g)
d
s
H
r
a≈
d1
YG6
YG8
YT5
YT14
C1305H
13.0
4.5
13.0
0.5
4.5
5.2
10.9
10.6
9.4
8.3
C1305HL
C1610H
16.0
5.5
16.0
1.0
5.3
6.2
17.8
17.5
15.7
13.5
C1610H L
C1910H
19.0
7.0
19.0
1.0
6.0
7.2
32.5
32.5
27.4
24.3
C1910H L
