Rods with one hole
Features of tungsten carbide rods with a straight coolant hole
1, Outside Diameter: 2.0-50.0mm, inside diameter: 0.3-10mm
2, standard length: 310mm, 330mm
3, Density: 14.0-14.9 g/cm3
4, Composition: WC+Co, WC+TiC+TaC+Co
5, Surface: Sintering surface, Forged surface, Ground surface
6, Can be designed according to customer's requirements.
Tungsten carbide is a class of materials widely used in machinery because of its superior strength, toughness, and wear resistance. The physical properties (hardness, TRS) of tungsten carbide are at least 3 times high than steel .it can take high pressure.
These are the specifications of our tungsten carbide rods with a straight coolant hole.

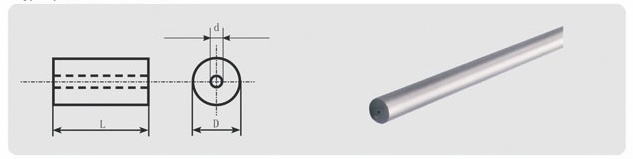

Tungsten carbide rods with one straight coolant hole
 |
||||||
| OD(mm) | Tolerance of OD(mm) | ID(mm) | Tolerance of OD(mm) | Max. Concentricity | Length | Tolerance of Length(mm) |
|---|---|---|---|---|---|---|
| dia2.5 | -/+0.20 | 0.3 | -/+0.10 | 0.20 | 330 | -/+5.0 |
| dia4.0 | -/+0.20 | 1.0 | -/+0.15 | 0.20 | 330 | -/+5.0 |
| dia6.0 | -/+0.20 | 1.0 | -/+0.15 | 0.20 | 330 | -/+5.0 |
| dia8.0 | -/+0.20 | 1.5 | -/+0.15 | 0.20 | 330 | -/+5.0 |
| dia10.0 | -/+0.40 | 2.0 | -/+0.20 | 0.25 | 330 | -/+5.0 |
| dia12.0 | -/+0.40 | 2.0 | -/+0.20 | 0.25 | 330 | -/+5.0 |
| dia14.0 | -/+0.40 | 2.0 | -/+0.20 | 0.25 | 330 | -/+5.0 |
| dia16.0 | -/+0.40 | 2.0 | -/+0.20 | 0.25 | 330 | -/+5.0 |
| dia18.0 | -/+0.40 | 3.0 | -/+0.25 | 0.30 | 330 | -/+5.0 |
| dia20.0 | -/+0.50 | 3.0 | -/+0.25 | 0.30 | 330 | -/+5.0 |
| dia22.0 | -/+0.50 | 3.0 | -/+0.25 | 0.30 | 330 | -/+5.0 |
| dia24.0 | -/+0.50 | 4.0 | -/+0.30 | 0.30 | 330 | -/+5.0 |
| dia26.0 | -/+0.50 | 5.0 | -/+0.35 | 0.30 | 330 | -/+5.0 |
| dia28.0 | -/+0.50 | 5.0 | -/+0.35 | 0.30 | 330 | -/+5.0 |
| dia30.0 | -/+0.50 | 5.0 | -/+0.35 | 0.30 | 330 | -/+5.0 |
Note: Rods of various diameter and hole size combinations can be supplied at customer’ requests.
