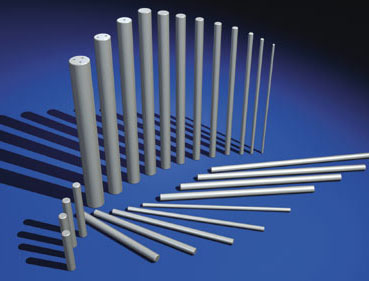

Finished end mill blanks

Finished end mill blanks introduce

Suitable for machining common steel, cast iron, stainless steel, heat-resistant steel, nickel based alloys and titanium alloys, etc. It is recommended for making conventional tools, such as twist drills, end mills, screw taps, gun drills, etc.

Finished end mill blanks

mm

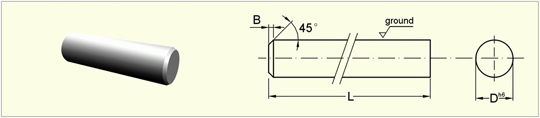

Dia. Length Chamfer Code D inch D mm L inch L mm B inch B mm code 1/8 3.175 1 1/2 38.1 0.015 0.381 S 2 50.8 3 76.2 T 3/16 4.763 1 1/2 38.1 0.015 0.381 S 2 50.8 2 1/2 63.5 U 3 76.2 T 1/4 6.350 1 1/2 38.1 0.025 0.635 S 2 50.8 2 1/2 63.5 U 3 76.2 T 3 1/4 82.6 3 1/2 88.9 4 101.6 5/16 7.938 2 50.8 0.025 0.635 S 2 1/2 63.5 U 3 76.2 T 3 1/2 88.9 4 101.6 3/8 9.525 2 50.8 0.030 0.762 S 2 1/2 63.5 U 3 76.2 T 3 1/4 82.6 3 1/2 88.0 4 101.6 6 152.4 7/16 11.113 2 1/2 63.5 0.030 0.762 U 2 3/4 69.9 4 101.6 T 4 1/2 114.3 5 127.0 1/2 12.700 2 1/2 63.5 0.030 0.762 U 3 76.2 T 3 1/8 79.4 4 101.6 4 1/2 114.3 5 127 6 152.4 9/16 14.288 3 76.2 0.030 0.762 T 3 1/2 88.9 5/8 15.875 3 76.2 0.030 0.762 T 3 1/2 88.9 3 3/4 95.3 4 1/8 104.8 5 127 8 203.2 3/4 19.050 3 76.2 0.040 1.016 T 3 1/2 88.9 4 101.6 4 1/2 114.3 5 127 6 152.4 6 1/2 165.1 7/8 22.225 4 101.6 0.040 1.016 T 1 25.400 3 76.2 0.040 1.016 T 3 1/2 88.9 4 101.6 5 127 6 152.4 7 177.8 1 1/4 31.750 4 1/2 114.3 0.040 1.016 T 6 152.4 7 1/2 190.5

Note: Tungsten carbide rod applications include drill bits, end mills, and reamers. Custom diameters and length are also available in these grades as well as metric sizes.
