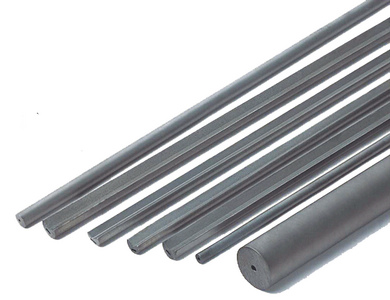

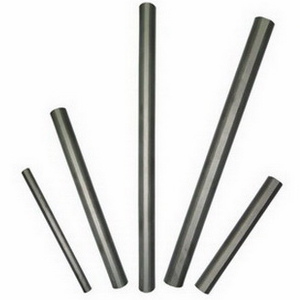

Sintered tungsten carbide rods
Features of tungsten carbide rods with two helical holes
1, Outside Diameter: 5.0-50.0mm, inside diameter: 0.5-10mm
2, standard length: 310mm, 330mm
3, Composition: WC+Co, WC+TiC+TaC+Co
4, Surface: Sintering surface, Forged surface, Ground surface
5, Can be designed according to customer's requirements.
Tungsten carbide is a class of materials widely used in machinery because of its superior strength, toughness, and wear resistance. The physical properties (hardness, TRS) of tungsten carbide are at least 3 times high than steel .it can take high pressure.
Speclcation of rods available with two helical holes
 |
||||||||
| OD(mm) | Tolerance of OD(mm) | ID(mm) | Tolerance of ID(mm) | TKΦ(mm) | Tolerance of TKΦ(mm) | Deviation a(mm) | Pitch(mm)(B:30O-/+5O) | |
|---|---|---|---|---|---|---|---|---|
| dia6.3 | -/+0.3 | 0.70 | -/+0.10 | 2.60 | -/+0.40 | 0.15 | 32.65 | -/+3.0 |
| dia6.8 | -/+0.3 | 1.00 | -/+0.15 | 3.50 | -/+0.40 | 0.15 | 35.37 | -/+3.0 |
| dia7.3 | -/+0.3 | 1.00 | -/+0.15 | 3.70 | -/+0.40 | 0.15 | 38.09 | -/+3.0 |
| dia7.8 | -/+0.3 | 1.00 | -/+0.15 | 4.00 | -/+0.40 | 0.15 | 40.81 | -/+3.0 |
| dia8.3 | -/+0.3 | 1.00 | -/+0.15 | 4.00 | -/+0.40 | 0.15 | 43.53 | -/+3.0 |
| dia8.8 | -/+0.3 | 1.00 | -/+0.15 | 4.50 | -/+0.60 | 0.20 | 46.25 | -/+4.5 |
| dia9.3 | -/+0.3 | 1.40 | -/+0.15 | 4.80 | -/+0.60 | 0.20 | 48.97 | -/+4.5 |
| dia9.8 | -/+0.3 | 1.40 | -/+0.15 | 4.80 | -/+0.60 | 0.20 | 81.96 | -/+4.5 |
| dia10.3 | -/+0.3 | 1.40 | -/+0.15 | 4.80 | -/+0.60 | 0.20 | 54.41 | -/+4.5 |
| dia10.8 | -/+0.4 | 1.40 | -/+0.15 | 4.80 | -/+0.80 | 0.28 | 57.13 | -/+4.5 |
| dia11.3 | -/+0.4 | 1.40 | -/+0.15 | 5.30 | -/+0.80 | 0.28 | 59.86 | -/+4.5 |
| dia11.8 | -/+0.4 | 1.40 | -/+0.20 | 5.90 | -/+0.80 | 0.30 | 62.58 | -/+6.0 |
| dia12.3 | -/+0.4 | 1.40 | -/+0.20 | 6.25 | -/+0.80 | 0.30 | 65.30 | -/+6.0 |
Note: Rods of various diameter and hole size combinations can be supplied at customer’ requests.
