Finished tungsten carbide rods

Finished tungsten carbide rods

1, Diameter: 0.5-50.0mm
2, Length: 10-500mm
3, Density: 11.3-16.5 g/cm3
4, Composition: WC+Co, WC+TiC+Co, WC+TiC+TaC+Co
5, Surface: Ground surface
6, Can be designed according to customer's requirements.

We supply premium grade tungsten carbide rod from stock in unground, centerless ground and polished form.
Recommended Grade for tungsten carbide rod: YG6, YG8, YG6X, YG012, YG013, YG8A etc.
Tungsten Carbide Rods are manufactured as standards with one, two, or three holes, straight or twisted to a 30 or 40 degree helix, or solid with no holes. All rods are available in standard lengths of 310 and 330 mm. Custom lengths available by request.

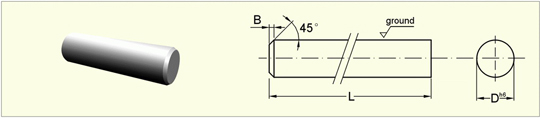

Finished Short Rods

mm

Dia. Dia. Tol. Length L Tol. Chamfer B 3.00 +0/-0.006 39 +0.50 0.3 4.00 +0/-0.008 51 0.4 5.00 6.00 　 6.00 +0/0.008 55 +0.50 0.4 6.00 58 8.00 +0/0.009 59 0.6 8.00 64 　 10.00 +0/-0.009 67 +0.50 0.6 10.00 73 0.8 12.00 +0/-0.011 　 12.00 84 +0.60 　 14.00 +0/-0.011 76 +0.50 0.8 14.00 84 +0.60 16.00 83 16.00 93 　 18.00 +0/-0.011 85 +0.60 1.0 18.00 93 20.00 +0/-0.013 　 20.00 105

Note: Tungsten carbide rod applications include drill bits, end mills, and reamers. Custom diameters and length are also available in these grades as well as metric sizes.
