Wolframcarbid stænger
Sintret wolframcarbid stænger
|
||||||||

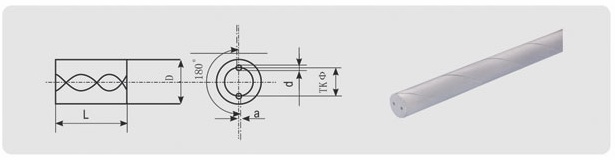

| OD(mm) | Tolerance of OD(mm) | ID(mm) | Tolerance of ID(mm) | TKΦ(mm) | Tolerance of TKΦ(mm) | Deviation a(mm) | Pitch(mm)(B:30O-/+5O) | |
|---|---|---|---|---|---|---|---|---|
| dia6.3 | -/+0.3 | 0.70 | -/+0.10 | 2.60 | -/+0.40 | 0.15 | 32.65 | -/+3.0 |
| dia6.8 | -/+0.3 | 1.00 | -/+0.15 | 3.50 | -/+0.40 | 0.15 | 35.37 | -/+3.0 |
| dia7.3 | -/+0.3 | 1.00 | -/+0.15 | 3.70 | -/+0.40 | 0.15 | 38.09 | -/+3.0 |
| dia7.8 | -/+0.3 | 1.00 | -/+0.15 | 4.00 | -/+0.40 | 0.15 | 40.81 | -/+3.0 |
| dia8.3 | -/+0.3 | 1.00 | -/+0.15 | 4.00 | -/+0.40 | 0.15 | 43.53 | -/+3.0 |
| dia8.8 | -/+0.3 | 1.00 | -/+0.15 | 4.50 | -/+0.60 | 0.20 | 46.25 | -/+4.5 |
| dia9.3 | -/+0.3 | 1.40 | -/+0.15 | 4.80 | -/+0.60 | 0.20 | 48.97 | -/+4.5 |
| dia9.8 | -/+0.3 | 1.40 | -/+0.15 | 4.80 | -/+0.60 | 0.20 | 81.96 | -/+4.5 |
| dia10.3 | -/+0.3 | 1.40 | -/+0.15 | 4.80 | -/+0.60 | 0.20 | 54.41 | -/+4.5 |
| dia10.8 | -/+0.4 | 1.40 | -/+0.15 | 4.80 | -/+0.80 | 0.28 | 57.13 | -/+4.5 |
| dia11.3 | -/+0.4 | 1.40 | -/+0.15 | 5.30 | -/+0.80 | 0.28 | 59.86 | -/+4.5 |
| dia11.8 | -/+0.4 | 1.40 | -/+0.20 | 5.90 | -/+0.80 | 0.30 | 62.58 | -/+6.0 |
| dia12.3 | -/+0.4 | 1.40 | -/+0.20 | 6.25 | -/+0.80 | 0.30 | 65.30 | -/+6.0 |
