Dokončené konec mill prázdné, tyče karbidu wolframu, karbidu wolframu rod
Færdige slutningen mill tomme, wolframcarbid stænger, wolframcarbid rod
Afgewerkte einde molen spaties, wolfraamcarbide staven, wolfraamcarbide rod
Finished end mill blanks, Tungsten carbide rods, Tungsten carbide rod
Fin fini usine flans, tiges de carbure de tungstène, tige de carbure de tungstène
Fertige Ende Mühle Platinen, Hartmetall-Stäbe, Hartmetall-Stab
Fine finito mulino spazi vuoti, canne di carburo di tungsteno, carburo di tungsteno rod
Ferdig slutten møllen tomme, Wolframkarbid stenger, Wolframkarbid stang
Acabado final moinho espaços em branco, barras de carboneto de tungstênio, carboneto de tungsténio haste
Sfârşitul terminat moara necompletate, carbură de Tungsten tije, carbură de Tungsten tija
Готовые конец мельница заготовок, стержни из карбида вольфрама, стержень из карбида вольфрама
Acabado final molino blanco, varillas de carburo de tungsteno, varilla de carburo de tungsteno
Färdiga slutet mill tomma, stång av volframkarbid, volframkarbid rod
Tamamlanan son değirmen boşluklar, Tungsten karbür çubuklar, Tungsten karbür çubuk

Tungsten karbür çubuklar

Tamamlanan son değirmen boşluklar

Tamamlanan son değirmen boşluklar Tamamlanan son değirmen boşluklar Tamamlanan son değirmen boşluklar

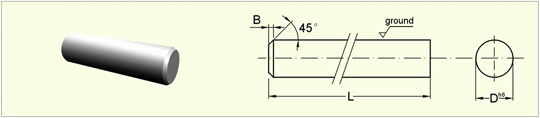

Finished end mill blanks

mm

Dia. Length Chamfer Code
D inch D mm L inch L mm B inch B mm code
1/8 3.175 1 1/2 38.1 0.015 0.381 S
2 50.8
3 76.2 T
3/16 4.763 1 1/2 38.1 0.015 0.381 S
2 50.8
2 1/2 63.5 U
3 76.2 T
1/4 6.350 1 1/2 38.1 0.025 0.635 S
2 50.8
2 1/2 63.5 U
3 76.2 T
3 1/4 82.6
3 1/2 88.9
4 101.6
5/16 7.938 2 50.8 0.025 0.635 S
2 1/2 63.5 U
3 76.2 T
3 1/2 88.9
4 101.6
3/8 9.525 2 50.8 0.030 0.762 S
2 1/2 63.5 U
3 76.2 T
3 1/4 82.6
3 1/2 88.0
4 101.6
6 152.4
7/16 11.113 2 1/2 63.5 0.030 0.762 U
2 3/4 69.9
4 101.6 T
4 1/2 114.3
5 127.0
1/2 12.700 2 1/2 63.5 0.030 0.762 U
3 76.2 T
3 1/8 79.4
4 101.6
4 1/2 114.3
5 127
6 152.4
9/16 14.288 3 76.2 0.030 0.762 T
3 1/2 88.9
5/8 15.875 3 76.2 0.030 0.762 T
3 1/2 88.9
3 3/4 95.3
4 1/8 104.8
5 127
8 203.2
3/4 19.050 3 76.2 0.040 1.016 T
3 1/2 88.9
4 101.6
4 1/2 114.3
5 127
6 152.4
6 1/2 165.1
7/8 22.225 4 101.6 0.040 1.016 T
1 25.400 3 76.2 0.040 1.016 T
3 1/2 88.9
4 101.6
5 127
6 152.4
7 177.8
1 1/4 31.750 4 1/2 114.3 0.040 1.016 T
6 152.4
7 1/2 190.5
