Tungsten karbür çubuklar

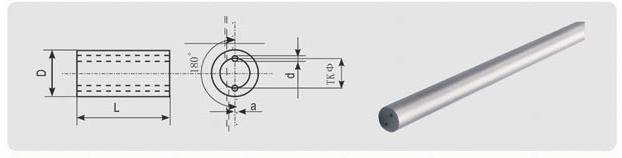

Çubuklar ile iki delik
|
||||||
| OD(mm) | Tolerance of OD(mm) | ID(mm) | Tolerance of ID(mm) | TKΦ(mm) | Tolerance of TKΦ(mm) | Deviation a(mm) |
|---|---|---|---|---|---|---|
| dia4.0 | -/+0.50 | 0.8 | -/+0.10 | 1.8 | -/+0.2 | -/+0.1 |
| dia5.0 | -/+0.50 | 0.8 | -/+0.10 | 2.0 | -/+0.2 | -/+0.13 |
| dia6.0 | -/+0.50 | 1.0 | -/+0.10 | 3.0 | -/+0.2 | -/+0.15 |
| dia7.0 | -/+0.50 | 1.0 | -/+0.15 | 3.5 | -/+0.3 | -/+0.15 |
| dia8.0 | -/+0.50 | 1.0 | -/+0.15 | 4.0 | -/+0.3 | -/+0.15 |
| dia9.0 | -/+0.50 | 1.4 | -/+0.15 | 4.0 | -/+0.3 | -/+0.2 |
| dia10.0 | -/+0.50 | 1.4 | -/+0.15 | 5.0 | -/+0.3 | -/+0.2 |
| dia11.0 | -/+0.60 | 1.4 | -/+0.15 | 5.0 | -/+0.5 | -/+0.28 |
| dia12.0 | -/+0.60 | 1.75 | -/+0.15 | 6.0 | -/+0.5 | -/+0.3 |
| dia13.0 | -/+0.60 | 1.75 | -/+0.15 | 6.0 | -/+0.5 | -/+0.34 |
| dia14.0 | -/+0.60 | 1.75 | -/+0.15 | 7.0 | -/+0.5 | -/+0.37 |
| dia15.0 | -/+0.60 | 2.0 | -/+0.20 | 7.0 | -/+0.5 | -/+0.4 |
| dia16.0 | -/+0.60 | 2.0 | -/+0.20 | 8.0 | -/+0.5 | -/+0.4 |
| dia17.0 | -/+0.60 | 2.0 | -/+0.20 | 8.0 | -/+0.8 | -/+0.47 |
| dia18.0 | -/+0.60 | 2.0 | -/+0.20 | 9.0 | -/+0.8 | -/+0.5 |
| dia19.0 | -/+0.60 | 2.0 | -/+0.20 | 9.0 | -/+0.8 | -/+0.5 |
| dia20.0 | -/+0.60 | 2.5 | -/+0.25 | 10.0 | -/+0.8 | -/+0.5 |
