Tungsten karbür çubuklar

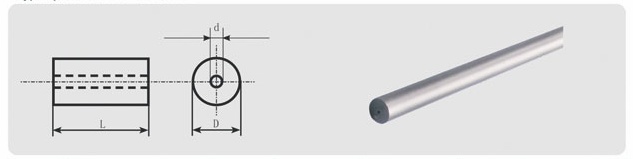

Çubuklar ile bir delik
|
||||||
| OD(mm) | Tolerance of OD(mm) | ID(mm) | Tolerance of OD(mm) | Max. Concentricity | Length | Tolerance of Length(mm) |
|---|---|---|---|---|---|---|
| dia2.5 | -/+0.20 | 0.3 | -/+0.10 | 0.20 | 330 | -/+5.0 |
| dia4.0 | -/+0.20 | 1.0 | -/+0.15 | 0.20 | 330 | -/+5.0 |
| dia6.0 | -/+0.20 | 1.0 | -/+0.15 | 0.20 | 330 | -/+5.0 |
| dia8.0 | -/+0.20 | 1.5 | -/+0.15 | 0.20 | 330 | -/+5.0 |
| dia10.0 | -/+0.40 | 2.0 | -/+0.20 | 0.25 | 330 | -/+5.0 |
| dia12.0 | -/+0.40 | 2.0 | -/+0.20 | 0.25 | 330 | -/+5.0 |
| dia14.0 | -/+0.40 | 2.0 | -/+0.20 | 0.25 | 330 | -/+5.0 |
| dia16.0 | -/+0.40 | 2.0 | -/+0.20 | 0.25 | 330 | -/+5.0 |
| dia18.0 | -/+0.40 | 3.0 | -/+0.25 | 0.30 | 330 | -/+5.0 |
| dia20.0 | -/+0.50 | 3.0 | -/+0.25 | 0.30 | 330 | -/+5.0 |
| dia22.0 | -/+0.50 | 3.0 | -/+0.25 | 0.30 | 330 | -/+5.0 |
| dia24.0 | -/+0.50 | 4.0 | -/+0.30 | 0.30 | 330 | -/+5.0 |
| dia26.0 | -/+0.50 | 5.0 | -/+0.35 | 0.30 | 330 | -/+5.0 |
| dia28.0 | -/+0.50 | 5.0 | -/+0.35 | 0.30 | 330 | -/+5.0 |
| dia30.0 | -/+0.50 | 5.0 | -/+0.35 | 0.30 | 330 | -/+5.0 |
