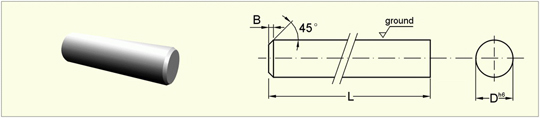

Ferdig slutten møllen tomme

Dia.		Length		Chamfer		Code
D inch	D mm	L inch	L mm	B inch	B mm	code
1/8	3.175	1 1/2	38.1	0.015	0.381	S
		2	50.8
		3	76.2			T
3/16	4.763	1 1/2	38.1	0.015	0.381	S
		2	50.8
		2 1/2	63.5			U
		3	76.2			T
1/4	6.350	1 1/2	38.1	0.025	0.635	S
		2	50.8
		2 1/2	63.5			U
		3	76.2			T
		3 1/4	82.6
		3 1/2	88.9
		4	101.6
5/16	7.938	2	50.8	0.025	0.635	S
		2 1/2	63.5			U
		3	76.2			T
		3 1/2	88.9
		4	101.6
3/8	9.525	2	50.8	0.030	0.762	S
		2 1/2	63.5			U
		3	76.2			T
		3 1/4	82.6
		3 1/2	88.0
		4	101.6
		6	152.4
7/16	11.113	2 1/2	63.5	0.030	0.762	U
		2 3/4	69.9
		4	101.6			T
		4 1/2	114.3
		5	127.0
1/2	12.700	2 1/2	63.5	0.030	0.762	U
		3	76.2			T
		3 1/8	79.4
		4	101.6
		4 1/2	114.3
		5	127
		6	152.4
9/16	14.288	3	76.2	0.030	0.762	T
		3 1/2	88.9
5/8	15.875	3	76.2	0.030	0.762	T
		3 1/2	88.9
		3 3/4	95.3
		4 1/8	104.8
		5	127
		8	203.2
3/4	19.050	3	76.2	0.040	1.016	T
		3 1/2	88.9
		4	101.6
		4 1/2	114.3
		5	127
		6	152.4
		6 1/2	165.1
7/8	22.225	4	101.6	0.040	1.016	T
1	25.400	3	76.2	0.040	1.016	T
		3 1/2	88.9
		4	101.6
		5	127
		6	152.4
		7	177.8
1 1/4	31.750	4 1/2	114.3	0.040	1.016	T
		6	152.4
		7 1/2	190.5
