Tungsten carbide drawing die

Type 31 drawing die

Type 31 drawing die Type 31 drawing die Type 31 drawing die

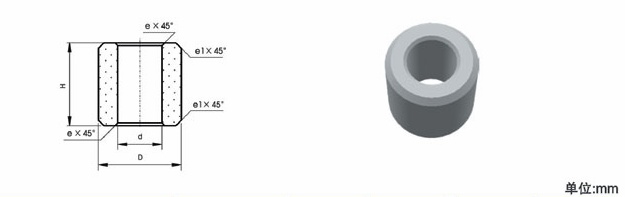

Type 31 drawing die

Tungsten carbide Drawing die
Type D(mm) H(mm) d(mm) e1 e
31-0142500-7.0 14 25 7 1.0 0.5
31-0152500-7.0 15 25 7
31-0162500-7.0 16 25 7
31-0172500-8.0 17 25 8
31-0182500-8.0 18 25 8
31-0193000-10.0 19 30 10
31-0203000-10.0 20 30 10
31-0213000-10.0 21 30 10
31-0223000-10.0 22 30 10
