Tungsten carbide brazed tips
Brazed tips type G

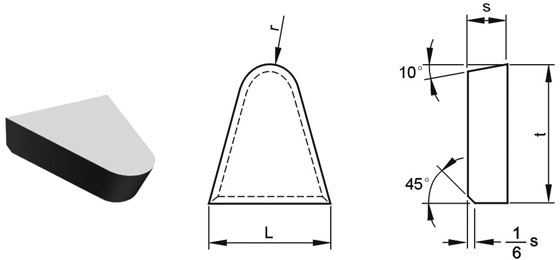

Tungsten carbide brazed tips type G
 |
|
Type
|
Dimension (mm)
|
|||
|
L
|
t
|
s
|
r
|
|
|
G8
|
8.0
|
12.0
|
4.0
|
1.0
|
|
G10
|
10.0
|
14.0
|
4.0
|
1.5
|
|
G12
|
12.0
|
17.0
|
5.0
|
2.5
|
|
G16
|
16.0
|
20.0
|
6.0
|
3.5
|
|
G20
|
20.0
|
24.0
|
6.0
|
4.5
|
|
G25
|
25.0
|
28.0
|
8.0
|
6.0
|
|
G30
|
30.0
|
34.0
|
10.0
|
8.0
|
