Tungsten carbide brazed tips
Brazed tips type A

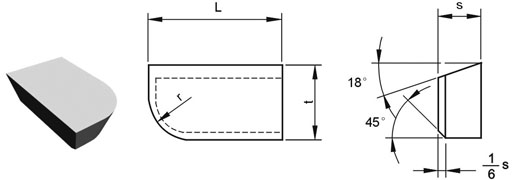

Tungsten carbide brazed tips type A
 |
|
Type
|
Dimension (mm)
|
|||
|
L
|
t
|
s
|
r
|
|
|
A5
|
5.0
|
3.0
|
2.0
|
2.0
|
|
A6
|
6.0
|
4.0
|
2.5
|
2.5
|
|
A8
|
8.0
|
5.0
|
3.0
|
3.0
|
|
A10
|
10.0
|
6.0
|
4.0
|
4.0
|
|
A12
|
12.0
|
8.0
|
5.0
|
5.0
|
|
A16
|
16.0
|
10.0
|
6.0
|
6.0
|
|
A20
|
20.0
|
12.0
|
7.0
|
7.0
|
|
A25
|
25.0
|
14.0
|
8.0
|
8.0
|
|
A32
|
32.0
|
18.0
|
10.0
|
10.0
|
|
A40
|
40.0
|
22.0
|
12.0
|
12.0
|
|
A50
|
50.0
|
25.0
|
14.0
|
14.0
|
