Tungsten carbide brazed tips
Brazed tips type D2

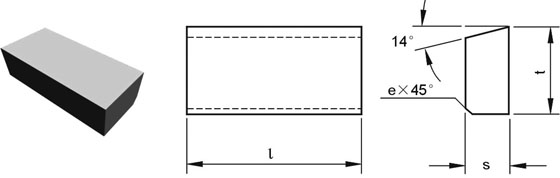

Tungsten carbide brazed tips type D2
 |
|
Type
|
Dimension(mm)
|
Approx unit weight(g)
|
||||||
|
l
|
t
|
s
|
e
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
D206
|
6.0
|
7.0
|
3.0
|
/
|
1.7
|
1.6
|
1.5
|
1.4
|
|
D208
|
8.0
|
4.0
|
3.0
|
/
|
1.5
|
1.4
|
1.2
|
1.1
|
|
D210
|
10.0
|
5.0
|
3.0
|
/
|
2.3
|
2.2
|
1.8
|
1.7
|
|
D210A
|
10.0
|
10.0
|
3.0
|
/
|
4.5
|
4.4
|
3.9
|
3.6
|
|
D212
|
12.0
|
6.0
|
3.0
|
/
|
3.3
|
3.2
|
2.6
|
2.4
|
|
D212A
|
12.0
|
12.0
|
3.5
|
0.8
|
7.2
|
7.1
|
6.1
|
5.6
|
|
D214
|
14.0
|
7.0
|
3.5
|
0.8
|
4.8
|
4.7
|
4.0
|
3.7
|
|
D214A
|
14.0
|
12.0
|
3.5
|
0.8
|
8.4
|
8.3
|
7.2
|
6.7
|
|
D216
|
16.0
|
7.0
|
3.5
|
0.8
|
5.3
|
5.2
|
4.6
|
4.4
|
|
D216A
|
16.0
|
12.0
|
3.5
|
0.8
|
9.6
|
9.4
|
8.2
|
7.6
|
|
D218
|
18.0
|
5.0
|
3.0
|
/
|
4.2
|
4.1
|
3.5
|
3.1
|
|
D218A
|
18.0
|
7.0
|
3.5
|
0.8
|
6.2
|
6.0
|
5.2
|
4.8
|
|
D218B
|
18.0
|
12.0
|
3.5
|
0.8
|
10.7
|
10.5
|
9.5
|
8.8
|
|
D220
|
20.0
|
10.0
|
4.0
|
0.8
|
11.3
|
11.1
|
9.8
|
9.1
|
|
D222
|
22.0
|
6.0
|
3.0
|
/
|
5.9
|
5.8
|
5.2
|
4.6
|
|
D222A
|
22.0
|
14.0
|
4.0
|
0.8
|
17.6
|
17.3
|
15.3
|
14.4
|
|
D224
|
24.0
|
14.0
|
4.0
|
0.8
|
18.9
|
18.7
|
16.2
|
15.0
|
|
D226
|
26.0
|
10.0 |
5.0
|
0.8
|
18.1
|
17.8
|
15.5
|
14.0
|
|
D226A
|
26.0
|
14.0
|
5.0
|
0.8
|
25.4
|
25.0
|
22.5
|
20.9
|
|
D228
|
28.0
|
10.0
|
4.0
|
0.8
|
15.7
|
15.4
|
13.7
|
12.1
|
|
D228A
|
28.0
|
14.0
|
4.0
|
0.8
|
22.5
|
22.3
|
20.2
|
17.5
|
|
D230
|
30.0
|
14.0
|
5.0
|
0.8
|
30.2
|
29.6
|
26.0
|
24.2
|
|
D232
|
32.0
|
12.0
|
5.0
|
0.8
|
27.3
|
27.0
|
23.7
|
21.0
|
|
D232A
|
32.0
|
14.0
|
4.0
|
0.8
|
25.3
|
25.0
|
22.5
|
20.9
|
|
D236
|
36.0
|
14.0
|
4.0
|
0.8
|
34.0
|
33.4
|
29.3
|
26.0
|
|
D238
|
38.0
|
12.0
|
5.0
|
0.8
|
32.9
|
32.5
|
28.2
|
25.0
|
|
D240
|
40.0
|
14.0
|
5.0
|
0.8
|
39.3
|
39.1
|
35.7
|
32.0
|
|
D246
|
46.0
|
14.0
|
5.0
|
0.8
|
48.5
|
47.5
|
41.7
|
37.0
|
