Tungsten carbide brazed tips

Brazed tips type B

Brazed tips type B Brazed tips type B Brazed tips type B

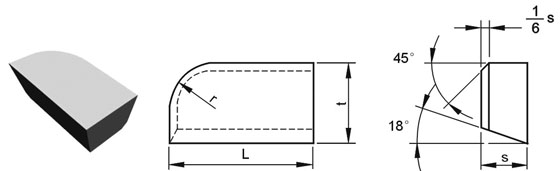

Tungsten carbide brazed tips type B

Type
Dimension (mm)
L
t
s
r
B5
5.0
3.0
2.0
2.0
B6
6.0
4.0
2.5
2.5
B8
8.0
5.0
3.0
3.0
B10
10.0
6.0
4.0
4.0
B12
12.0
8.0
5.0
5.0
B16
16.0
10.0
6.0
6.0
B20
20.0
12.0
7.0
7.0
B25
25.0
14.0
8.0
8.0
B32
32.0
18.0
10.0
10.0
B40
40.0
22.0
12.0
12.0
B50
50.0
25.0
14.0
14.0
