Tungsten carbide brazed tips

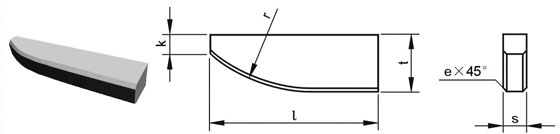

Brazed tips type E3
Tungsten carbide brazed tips type E3
 |
|
Type
|
Dimension(mm)
|
Approx unit weight(g)
|
||||||||
|
l
|
t
|
s
|
k
|
r
|
e
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
E312
|
12.0
|
6.0
|
1.5
|
1.5
|
20.0
|
/
|
1.3
|
1.3
|
1.0
|
0.9
|
|
E315
|
15.0
|
3.5
|
2.0
|
1.5
|
20.0
|
/
|
1.4
|
1.4
|
1.2
|
1.1
|
|
E315A
|
15.0
|
7.0
|
2.0
|
2.5
|
25.0
|
/
|
2.4
|
2.3
|
2.1
|
2.0
|
|
E320
|
20.0
|
4.5
|
2.5
|
2.5
|
25.0
|
/
|
2.9
|
2.8
|
2.7
|
2.5
|
|
E320A
|
20.0
|
6.0
|
3.5
|
2.5
|
25.0
|
0.5
|
5.3
|
5.3
|
4.2
|
3.9
|
|
E320B
|
20.0
|
9.0
|
2.5
|
3.5
|
30.0
|
0.5
|
5.6
|
5.6
|
4.5
|
4.1
|
|
E325
|
25.0
|
8.0
|
3.0
|
3.5
|
30.0
|
0.5
|
7.1
|
7.1
|
6.9
|
6.2
|
|
E325A
|
25.0
|
15.0
|
3.0
|
3.5
|
30.0
|
0.5
|
13.1
|
12.9
|
11.2
|
10.0
|
|
E330
|
30.0
|
10.0
|
4.0
|
3.5
|
30.0
|
0.5
|
15.3
|
15.0
|
12.9
|
11.7
|
|
E330A
|
30.0
|
21.0
|
4.0
|
3.5
|
30.0
|
0.5
|
29.5
|
29.2
|
24.5
|
21.9
|
|
E335A
|
35.0
|
10.0
|
5.0
|
3.5
|
30.0
|
0.8
|
22.9
|
22.5
|
19.5
|
17.6
|
|
E340
|
40.0
|
12.0
|
5.0
|
3.5
|
30.0
|
0.8
|
26.1
|
26.8
|
22.0
|
20.2
|
|
E345
|
45.0
|
12.0
|
6.0
|
3.5
|
30.0
|
0.8
|
41.6
|
41.0
|
35.0
|
31.6
|
