Tungsten carbide roller

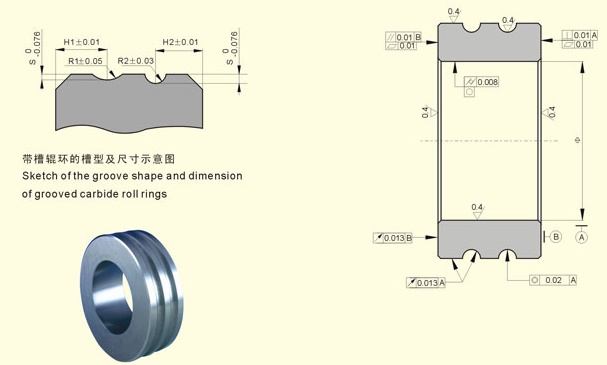

Finished carbide roll rings
Dimensions and precision of the finished carbide roll rings
1, Outside diameter: 145mm-380mm
2, Inside diameter: 87mm-260mm
3, Height: 62-130
We can supply them according to the drawings provided by customers.
Tolerances allowable for the O.D., I.D. and height of roll rings
| Precision Class | Tolerances of OD (mm) | Tolerances of ID (mm) | Tolerances of height (mm) |
|---|---|---|---|
| Class 1 | 0.02 | IT5 | 0.03 |
| Class 2 | 0.05 | IT6 | 0.10 |
| Class 3 | 0.10 | IT7 | 0.20 |
| Class 4 | 0.15 | IT8 | 0.50 |
The allowable deviation of carbide roll rings
- Radial runout of groove < 0.01mm
- Radial runout of periphery < 0.02mm
- End face runout < 0.02mm
- End face planeness < 0.01mm
- End face of parallelism < 0.01mm
- Inner hole cylindercity < 0.01mm
Roughness of carbide rolls
- Inner hole roughness 0.4um
- External roughness 0.4um
- End face roughness 0.4um
