Tungsten carbide pressure cylinders

Tungsten carbide pressure cylinders as sintered

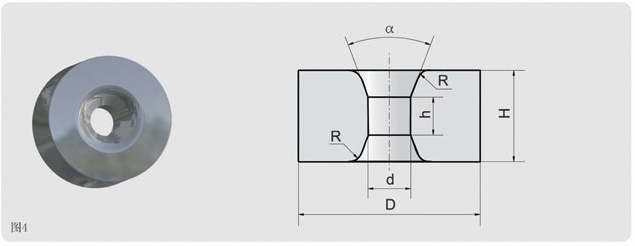

Type	Dimensions(mm)
	D	Tolerance	H	Tolerance	d	Tolerance	h	a	R
DC250-1	171.5	-0.5~+2.5	111.5	0~+2.0	49.0	-2.0~0	54	59	24.5
DC250-2	207.5	-0.5~+2.5	121.0	0~+2.5	49.0	-2.0~0	51	11	30.6
DC241	181.5	-0.5~+2.5	108.0	0~+2.5	40.0	-2.0~0	50	11	30.0
DC256	219.5	-0.5~+2.5	112.0	0~+2.5	55.0	-2.0~0	54	59	24.5
DC268	281.5	-0.5~+3.5	141.0	0~+2.5	67.5	-2.0~0	65	82	25.0

Note: All of above is the recommended specifications, and sintered and finish machined products of other specifications are available based on customers' drawings or samples.

Code key for the description of sintered products

• The part is 2 Chinese phonetic alphabets indicating the name of sintered products. For example, DC indicates anvils and DG indicates pressure cylinders.
• The second part is one numeral indicating the category of sintered products. For example, 6-facet anvils are indicated by 6 and 2-facet anvils and pressure cylinders are indicated by 2.
• The third part with 2 numerals indicates the dimensions of the working facets of the anvils or the dimensions of the cavity of the pressure cylinders with only integers.
