Tungsten carbide mining bits

Mining bits type K0

Mining bits type K0

Mining bits type K0

Mining bits type K0

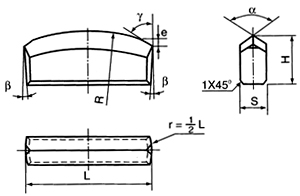

Tungsten carbide Mining bits type K0

mm

Type	Dimension								Note
Type	L	H	S	R	α	β	γ	e	Note
K0-95007	20.0	15.0	7.0	180.0	110^o	3^o	/	/	G95207
K0-95008	22.0	15.0					/	/	G95208
K0-97004	24.0	13.0					/	/	G97227
K026	36.0	18.0	8.0				/	/	/
K0-97005	28.0	13.0	7.5				/	/	G97228
K028	28.0	18.0	8.0				/	/	/
K0-99013	30.0	13.0	7.0				/	/	/
K030	30.0	18.0	8.0				/	/	/
K0-99501	30.2	12.2					/	/	K030-12
K0-98009	32.0	12.0					/	/	DK-9807
K032	32.0	18.0					/	/	/
K0-98014	33.0	16.0	9.2				/	/	DK-9825
K0-99011	34.0	12.0	8.0				40^o	1.5	/
K034	34.0	18.0	10.0				/	/	/
K0-99015	36.0	13.5	7.5				/	/	/
K0-98005	36.0	14.5	9.0				/	/	G98132
K036	36.0	18.0	10.0				/	/	/
K0-91008	38.0	11.0	10.0				/	/	G91999
K0-98007		14.5	9.0				/	/	G98131
K0-93002		15.0	8.0				/	/	G93194
K038	39.0	18.0	10.0				/	/	the same as G89122
K0-91501	40.0	17.3	10.0				/	/	W91023
K0-99030		13.5	9.0				/	/	/
K040B		15.0	10.0				/	/	/
K0-96007		17.0	9.5				/	/	G96063
K040		18.0	10.0				/	/	/
K0-91006	41.0	18.0	12.0				/	/	G91541
K0-96009	42.0	12.5	10.0				/	/	G96085
K0-96013	42.0	13.5	9.2				/	/	G96127
K0-94002	43.0	15.0	9.0				/	/	G94546
K015B	43.0	15.0	10.0				/	/	/
K044	44.0	18.0					/	/	/
K0-93006	46.0	15.0					/	/	G93906
K046		18.0					/	/	/
K0-76001		20.0	12.0				/	/	G6005-B
K0-76003		20.0	12.0				/	/	G6105
K049	49.0	18.0	10.0				/	/	/
K051	51.0	18.0					/	/	G55185
K0-76002	60.0	22.0					/	/	G6104
