Volframkarbid gruvdrift bitar

Gruvdrift bitar typ K0

Gruvdrift bitar typ K0

Gruvdrift bitar typ K0

Gruvdrift bitar typ K0

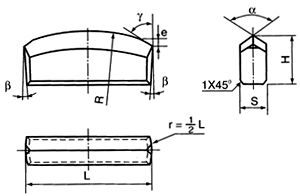

Tungsten carbide Mining bits type K0

mm

Type	Dimension								Note
Type	L	H	S	R	α	β	γ	e	Note
K0-95007	20.0	15.0	7.0	180.0	110^o	3^o	/	/	G95207
K0-95008	22.0	15.0					/	/	G95208
K0-97004	24.0	13.0					/	/	G97227
K026	36.0	18.0	8.0				/	/	/
K0-97005	28.0	13.0	7.5				/	/	G97228
K028	28.0	18.0	8.0				/	/	/
K0-99013	30.0	13.0	7.0				/	/	/
K030	30.0	18.0	8.0				/	/	/
K0-99501	30.2	12.2					/	/	K030-12
K0-98009	32.0	12.0					/	/	DK-9807
K032	32.0	18.0					/	/	/
K0-98014	33.0	16.0	9.2				/	/	DK-9825
K0-99011	34.0	12.0	8.0				40^o	1.5	/
K034	34.0	18.0	10.0				/	/	/
K0-99015	36.0	13.5	7.5				/	/	/
K0-98005	36.0	14.5	9.0				/	/	G98132
K036	36.0	18.0	10.0				/	/	/
K0-91008	38.0	11.0	10.0				/	/	G91999
K0-98007		14.5	9.0				/	/	G98131
K0-93002		15.0	8.0				/	/	G93194
K038	39.0	18.0	10.0				/	/	the same as G89122
K0-91501	40.0	17.3	10.0				/	/	W91023
K0-99030		13.5	9.0				/	/	/
K040B		15.0	10.0				/	/	/
K0-96007		17.0	9.5				/	/	G96063
K040		18.0	10.0				/	/	/
K0-91006	41.0	18.0	12.0				/	/	G91541
K0-96009	42.0	12.5	10.0				/	/	G96085
K0-96013	42.0	13.5	9.2				/	/	G96127
K0-94002	43.0	15.0	9.0				/	/	G94546
K015B	43.0	15.0	10.0				/	/	/
K044	44.0	18.0					/	/	/
K0-93006	46.0	15.0					/	/	G93906
K046		18.0					/	/	/
K0-76001		20.0	12.0				/	/	G6005-B
K0-76003		20.0	12.0				/	/	G6105
K049	49.0	18.0	10.0				/	/	/
K051	51.0	18.0					/	/	G55185
K0-76002	60.0	22.0					/	/	G6104
