Volframkarbid gruvdrift bitar

Gruvdrift bitar typ K20

Gruvdrift bitar typ K20

Gruvdrift bitar typ K20

Gruvdrift bitar typ K20

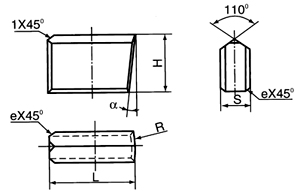

Tungsten carbide Mining bits type K20

mm

Type	Dimension						Note
Type	L	H	S	R	α	e	Note
K20-91002	10.0	13.0	8.0	20.0	2o30'	1.0	G91727
K2012	12.0	12.0		16.0	3^o		/
K2013	13.0			16.0			/
K2014	14.0			17.0			/
K2015	15.0			20.0			/
K2016	16.0	14.0		20.0			G96090
K20-96501	16.5	22.0	13.0	26.0			W96059
K2017	17.0	14.0	8.0	20.0			/
K2019	19.0	14.0	8.0	22.0			/
K2020	20.0	16.0	10.0	23.0		1.5	/
K2022	22.0	16.0	10.0	25.0		1.5	/
K20-96502	23.0	23.0	13.0	32.5		1.0	W96060
K2024	24.0	16.0	10.0	27.0		1.5	/
K2026	26.0			29.0			/
K2028	28.0			31.0			/
K2030	30.0		12.0	35.0			/
K2032B	32.0	16.0	10.0	31.0		1.0	G90689
K2032	32.0	18.0	12.0	38.0		2.0	/
K2035	35.0	20.0	15.0	45.0			/
K2041	41.0	22.0	17.0	51.0			/
K2045	45.0	25.0	19.0	57.5			/
K2053	53.0	25.0	20.0	59.0			/
