Tungsten karbür incelemesi bit

Madencilik bit türü K20

Madencilik bit türü K20

Madencilik bit türü K20

Madencilik bit türü K20

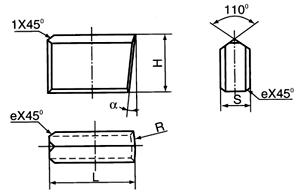

Tungsten carbide Mining bits type K20

mm

Type	Dimension						Note
Type	L	H	S	R	α	e	Note
K20-91002	10.0	13.0	8.0	20.0	2o30'	1.0	G91727
K2012	12.0	12.0		16.0	3^o		/
K2013	13.0			16.0			/
K2014	14.0			17.0			/
K2015	15.0			20.0			/
K2016	16.0	14.0		20.0			G96090
K20-96501	16.5	22.0	13.0	26.0			W96059
K2017	17.0	14.0	8.0	20.0			/
K2019	19.0	14.0	8.0	22.0			/
K2020	20.0	16.0	10.0	23.0		1.5	/
K2022	22.0	16.0	10.0	25.0		1.5	/
K20-96502	23.0	23.0	13.0	32.5		1.0	W96060
K2024	24.0	16.0	10.0	27.0		1.5	/
K2026	26.0			29.0			/
K2028	28.0			31.0			/
K2030	30.0		12.0	35.0			/
K2032B	32.0	16.0	10.0	31.0		1.0	G90689
K2032	32.0	18.0	12.0	38.0		2.0	/
K2035	35.0	20.0	15.0	45.0			/
K2041	41.0	22.0	17.0	51.0			/
K2045	45.0	25.0	19.0	57.5			/
K2053	53.0	25.0	20.0	59.0			/
