Tungsten carbide drilling bits

Drilling bits type CB

Drilling bits type CB

Drilling bits type CB

Drilling bits type CB

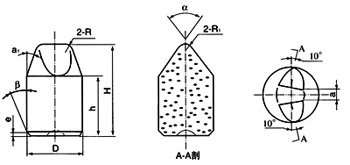

Tungsten carbide drilling bits Type CB(Special Wedge Button)

mm

Type	Dimension										Note
Type	D	H	R	R1	h	α	α1	β	a	e	Note
CB1215	12.0	15.0	2.0	2.5	9.5	80^o	18^o	18^o	3.0	1.2	G95026
CB1217	12.0	17.0	2.0		11.0	70^o	18^o		3.0	1.2	G95118
CB1316	13.0	16.5	1.8		10.5	75^o	21^o		4.0	1.5	CB-9801
CB-96001	13.0	18.0	2.0		12.0	75^o	18^o		3.0	1.2	G96345
CB1418	14.0	18.0	2.5	3.0		80^o	20^o	15^o	4.0	1.5	10X
CB1419	14.0	19.0	2.0			75^o		15^o	5.0	1.5	11X
CB1520	15.0	20.0	2.5		12.5	75^o	18^o	18^o	3.5	2.2	G89066
CB1621	16.0	21.0	2.5		13.5	70^o	20^o		4.0	1.8	G84213
CB1827	18.0	27.0	3.0		18.0		23^o		6.0	2.0	G85274
CB1924	19.0	24.0	3.5		15.0		20^o		4.5	1.8	G84242
CB2230	22.0	30.0	3.5		17.0	60^o	18^o		4.5	2.2	G87349
