Bits perforación tipo CB

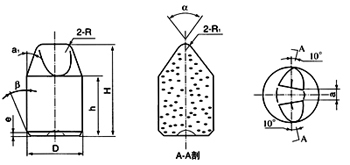

Taladro de carburo de tungsteno bits tipo CB(Special Wedge Button)

mm
Type Dimension Note D H R R1 h α α1 β a e CB1215 12.0 15.0 2.0 2.5 9.5 80o 18o 18o 3.0 1.2 G95026 CB1217 17.0 11.0 70o G95118 CB1316 13.0 16.5 1.8 10.5 75o 21o 4.0 1.5 CB-9801 CB-96001 18.0 2.0 12.0 18o 3.0 1.2 G96345 CB1418 14.0 2.5 3.0 80o 20o 15o 4.0 1.5 10X CB1419 19.0 2.0 75o ? 5.0 11X CB1520 15.0 20.0 2.5 12.5 18o 18o 3.5 2.2 G89066 CB1621 16.0 21.0 13.5 70o 20o 4.0 1.8 G84213 CB1827 18.0 27.0 3.0 18.0 23o 6.0 2.0 G85274 CB1924 19.0 24.0 3.5 15.0 20o 4.5 1.8 G84242 CB2230 22.0 30.0 17.0 60o 18o 2.2 G87349
