Morrer de desenho de carboneto de tungsténio

Die desenho tipo 60

Die desenho tipo 60 Die desenho tipo 60 Die desenho tipo 60

Die desenho tipo 60

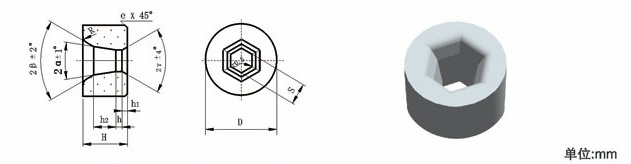

Tungsten carbide Drawing die
Type D x H (mm) s(mm)
60-0302114-s 30 x 21 14o 2.5, 3.0, 4.0, 4.7, 5.7, 6.7, 7.7
60-0352114-s 35 x 21 14o 8.6, 9.6, 10.6
60-0352122-s 35 x 21 22o 9.6, 10.6
60-0402514-s 40 x 25 14o 11.5, 12.5
60-0432422-s 43 x 24 22o 14.5, 15.5
60-0452514-s 45 x 25 14o 13.5, 14.5, 15.5, 16.5, 17.5
60-0452523-s 45 x 25 23o 17.7, 18.7
60-0552814-s 55 x 28 14o 19.5, 20.5, 21.5, 22.5, 23.5
60-0552823-s 55 x 28 23o 19.7, 20.7, 21.7, 22.7, 23.7
60-0653016-s 65 x 30 16o 24.5, 25.5, 26.5, 27.5, 28.5
60-0653023-s 65 x 30 23o 24.7, 25.7, 26.7, 27.7, 28.7
60-0753516-s 75 x 35 16o 29.5, 30.5, 31.3, 32.3, 33.3, 34.3, 35.3, 36.3, 37.3
60-0903516-s 90 x 35 16o 38.3, 39.3, 41.0, 42.0, 44.0, 47.0, 49.0
60-1004016-s 100 x 40 16o 52.0, 54.0, 57.5
60-1204216-s 120 x 42 16o 59.5, 61.5, 64.5, 67.5, 70.5, 74.5
