Morrer de desenho de carboneto de tungsténio

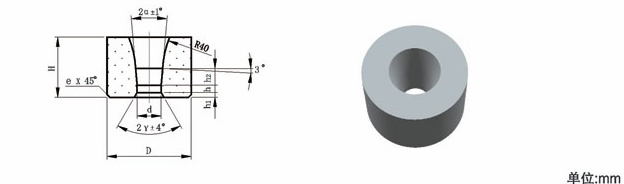

Die desenho tipo 20
Die desenho tipo 20
|
|||
| Type | D x H (mm) | 2α | d(mm) |
|---|---|---|---|
| 20-0161406-d | 16 x 14 | 6o | 2.0, 3.0 |
| 20-0221806-d | 22 x 18 | 6o | 4.0 |
| 20-0302206-d | 30 x 22 | 6o | 5.0, 6.0, 7.0, 8.0 |
| 20-0352506-d | 35 x 25 | 6o | 9.0, 10.0, 11.0 |
| 20-0402806-d | 40 x 28 | 6o | 12.0, 13.0, 14.0 |
| 20-0453006-d | 45 x 30 | 6o | 15.0, 16.0, 17.0 |
| 20-0503206-d | 50 x 32 | 6o | 18.0, 19.0, 20.0, 21.0 |
| 20-0553206-d | 55 x 32 | 6o | 22.0, 23.0, 24.0, 25.0 |
| 20-0603406-d | 60 x 34 | 6o | 26.0, 27.0, 28.0, |
| 20-0653606-d | 65 x 36 | 6o | 29.0, 30.0, 31.0 |
| 20-0754206-d | 75 x 42 | 6o | 33.0, 35.0 |
| 20-0854506-d | 85 x 45 | 6o | 37.0, 39.0 |
| 20-0954806-d | 95 x 48 | 6o | 41.0, 43.0, 45.0 |
| 20-1005206-d | 100 x 52 | 6o | 47.0, 51.0 |
| 20-1105206-d | 110 x 52 | 6o | 56.0, 60.0 |
