Morrer de desenho de carboneto de tungsténio

Die desenho tipo 40

Die desenho tipo 40 Die desenho tipo 40 Die desenho tipo 40

Die desenho tipo 40

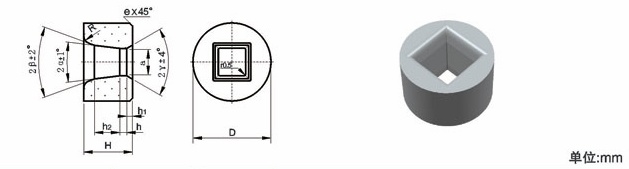

Tungsten carbide Drawing die
Type D x H (mm) d(mm)
40-0161214-d 16 x 12 14o 1.8, 2.4
40-0221814-d 22 x 18 14o 2.8, 3.2, 3.6, 4.0
40-0302114-d 30 x 21 14o 4.6, 5.0, 5.7, 6.7
40-0352514-d 35 x 25 14o 7.7, 8.7, 9.7
40-0452514-d 45 x 25 14o 10.7, 11.7, 12.7, 13.7, 14.7
40-0502814-d 50 x 28 14o 15.7, 16.7, 17.7, 18.7
40-0603016-d 60 x 30 16o 19.7, 20.7, 21.7, 22.7, 23.7
40-0653216-d 65 x 32 16o 24.7, 25.5, 26.5, 27.5
40-0703516-d 70 x 35 16o 28.5, 29.5, 30.5, 31.5
40-0853516-d 80 x 35 16o 32.5, 33.5, 34.5, 35.5, 36.5, 37.5
40-0904020-d 90 x 40 20o 38.5, 39.5, 40.5, 41.5
40-1004020-d 100 x 40 20o 42.5, 44.5, 47.5
40-1204520-d 120 x 45 20o 49.5, 51.5, 53.5
