Wolfraamcarbide tekening sterven

Type 40 tekening sterven

Type 40 tekening sterven Type 40 tekening sterven Type 40 tekening sterven

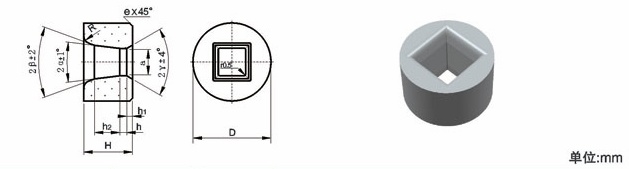

Tungsten carbide Drawing die
Type D x H (mm) d(mm)
40-0161214-d 16 x 12 14o 1.8, 2.4
40-0221814-d 22 x 18 14o 2.8, 3.2, 3.6, 4.0
40-0302114-d 30 x 21 14o 4.6, 5.0, 5.7, 6.7
40-0352514-d 35 x 25 14o 7.7, 8.7, 9.7
40-0452514-d 45 x 25 14o 10.7, 11.7, 12.7, 13.7, 14.7
40-0502814-d 50 x 28 14o 15.7, 16.7, 17.7, 18.7
40-0603016-d 60 x 30 16o 19.7, 20.7, 21.7, 22.7, 23.7
40-0653216-d 65 x 32 16o 24.7, 25.5, 26.5, 27.5
40-0703516-d 70 x 35 16o 28.5, 29.5, 30.5, 31.5
40-0853516-d 80 x 35 16o 32.5, 33.5, 34.5, 35.5, 36.5, 37.5
40-0904020-d 90 x 40 20o 38.5, 39.5, 40.5, 41.5
40-1004020-d 100 x 40 20o 42.5, 44.5, 47.5
40-1204520-d 120 x 45 20o 49.5, 51.5, 53.5
