Carbure de tungstène bits de forage.

CE type de forages bits

CE type de forages bits

CE type de forages bits

CE type de forages bits

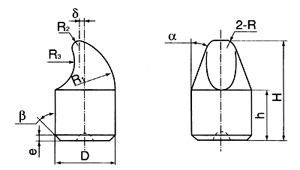

Carbure de tungstène forage bits de Type CE(Wedge Button)

mm

Type	Dimension									Note
Type	D	H	h	R	R1	α	β	γ	e	Note
CE0811	8.0	11.0	7.5	1.8	1.5	90^o	18^o	15^o	1.2	CX-9801
CE-94001	8.0	111.5	6.5	2.0	1.5	62^o	18^o	20^o	1.3	G94039
CE1013	10.0	13.0	8.0	3.0	2.5	70^o	20^o	22o30'	1.5	G83126
CE-96001	11.0		9.0	2.8		70^o	18^o	16o30'		G96265
CE-96002			9.0			90^o		16o30'		G96264
CE1115		15.0	8.0			65^o		20^o		G83127
CE1217	12.0	17.0	10.5	3.5	3.0	70^o		22o30'	1.6	GX1
CE1520	15.0	20.0	12.0	3.0	3.0	80^o		22o30'	1.8	G82420
cE1623A	16.0	23.0	12.0	3.0	3.5	60^o		18^o	1.8	G82419
CE1721	17.0	21.0	13.0	4.0		80^o		22o30'	2.2	G83546
CE1724	17.0	24.0	13.0	3.5		60^o		22o30'		G83545
CE1929	19.0	29.0	17.0	4.0	3.0	60^o		15^o		G86004
CE2030	20.0	30.0	16.0	3.0	1.5	62^o		20^o		G87116
CE2235	22.0	35.0	19.0	3.5	2.5	60^o		13^o		G94614
CE2537	25.0	37.0	20.0	3.0	1.5	62o30'		20^o		G87117
CE2539	25.0	39.0	20.0	3.0	1.5	60^o		20^o		G87118
