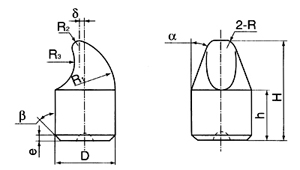

Boren bits Typ CE

Type	Dimension									Note
Type	D	H	h	R	R1	α	β	γ	e	Note
CE0811	8.0	11.0	7.5	1.8	1.5	90^o	18^o	15^o	1.2	CX-9801
CE-94001	8.0	111.5	6.5	2.0	1.5	62^o	18^o	20^o	1.3	G94039
CE1013	10.0	13.0	8.0	3.0	2.5	70^o	20^o	22o30'	1.5	G83126
CE-96001	11.0		9.0	2.8		70^o	18^o	16o30'		G96265
CE-96002			9.0			90^o		16o30'		G96264
CE1115		15.0	8.0			65^o		20^o		G83127
CE1217	12.0	17.0	10.5	3.5	3.0	70^o		22o30'	1.6	GX1
CE1520	15.0	20.0	12.0	3.0	3.0	80^o		22o30'	1.8	G82420
cE1623A	16.0	23.0	12.0	3.0	3.5	60^o		18^o	1.8	G82419
CE1721	17.0	21.0	13.0	4.0		80^o		22o30'	2.2	G83546
CE1724	17.0	24.0	13.0	3.5		60^o		22o30'		G83545
CE1929	19.0	29.0	17.0	4.0	3.0	60^o		15^o		G86004
CE2030	20.0	30.0	16.0	3.0	1.5	62^o		20^o		G87116
CE2235	22.0	35.0	19.0	3.5	2.5	60^o		13^o		G94614
CE2537	25.0	37.0	20.0	3.0	1.5	62o30'		20^o		G87117
CE2539	25.0	39.0	20.0	3.0	1.5	60^o		20^o		G87118
