Wolframkarbid, Cemented carbide Wolframkarbid produkter

Position:Home>>Wolframkarbid boring biter

Wolframkarbid boring biter

Bore biter Skriv inn CE

Bore biter Skriv inn CE

Bore biter Skriv inn CE

Bore biter Skriv inn CE

mm

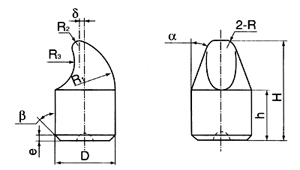

Type	Dimension									Note
Type	D	H	h	R	R1	α	β	γ	e	Note
CE0811	8.0	11.0	7.5	1.8	1.5	90^o	18^o	15^o	1.2	CX-9801
CE-94001	8.0	111.5	6.5	2.0	1.5	62^o	18^o	20^o	1.3	G94039
CE1013	10.0	13.0	8.0	3.0	2.5	70^o	20^o	22o30'	1.5	G83126
CE-96001	11.0		9.0	2.8		70^o	18^o	16o30'		G96265
CE-96002			9.0			90^o		16o30'		G96264
CE1115		15.0	8.0			65^o		20^o		G83127
CE1217	12.0	17.0	10.5	3.5	3.0	70^o		22o30'	1.6
