Bore biter Skriv inn CS

Type	Dimension										Note

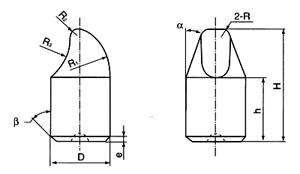

Type	D	H	R	R1	R2	R3	h	α	β	e	Note
CS1115	11.0	15.0	2.5	12.0	2.5	8.0	8.0	18^o	18^o	1.2	G96004
CS1217	12.0	17.0	2.5	20.0	2.0	12.0	10.0		18^o		G96344
CS1318	13.0	18.0	3.0	15.0	3.0	5.0	11.0		15^o		G90342
CS1418	14.0	18.3	3.0	16.0	2.5	8.0	9.6		15^o		G90344
CS-92001	14.0	19.0	2.5	13.0	4.0	5.0	11.0		10^o		G92026
CS1519	15.0	19.0	3.0	18.0	2.3	9.0	10.0				G90345
CS-96002	16.0	22.5	3.0	20.0	2.5	10.0	11.9			1.3	G96299
CS1623	16.0	23.0	2.5	23.0	2.5	15.0	12.0	15^o		1.8	G83125
CS1724	17.0	24.0	3.0	25.0	3.0	15.0	13.0	20^o			G83655
CS1727	17.0	27.0	2.5	28.0	2.5	20.0	14.0	18^o			CS-9808
CS1825	18.0	25.5	3.0	23.0	3.0	15.0	13.5	18^o		1.4	G92688
CS1929	19.0	29.0		24.0	3.0	17.0	17.0	15^o		2.0	CS-9806
CS1930		30.0		25.0	?	16.0				2.2	G84241
CS1933		33.0		27.0	?	18.0				1.5	G89312
CS2545	25.0	45.0	4.0	35.0	3.5	30.0	23.0	13^o		1.8	G87351
