Bits perforación tipo CS

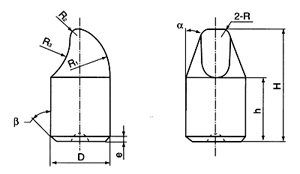

Taladro de carburo de tungsteno bits tipo CS(Spoon-like Button)

mm
Type Dimension Note D H R R1 R2 R3 h α β e CS1115 11.0 15.0 2.5 12.0 2.5 8.0 8.0 18o 18o 1.2 G96004 CS1217 12.0 17.0 20.0 2.0 12.0 10.0 G96344 CS1318 13.0 18.0 3.0 15.0 3.0 5.0 11.0 15o G90342 CS1418 14.0 18.3 16.0 2.5 8.0 9.6 G90344 CS-92001 19.0 2.5 13.0 4.0 5.0 11.0 10o G92026 CS1519 15.0 3.0 18.0 2.3 9.0 10.0 G90345 CS-96002 16.0 22.5 20.0 2.5 10.0 11.9 1.3 G96299 CS1623 23.0 2.5 23.0 15.0 12.0 15o 1.8 G83125 CS1724 17.0 24.0 3.0 25.0 3.0 13.0 20o G83655 CS1727 27.0 2.5 28.0 2.5 20.0 14.0 18o CS-9808 CS1825 18.0 25.5 3.0 23.0 3.0 15.0 13.5 1.4 G92688 CS1929 19.0 29.0 24.0 17.0 17.0 15o 2.0 CS-9806 CS1930 30.0 25.0 ? 16.0 2.2 G84241 CS1933 33.0 27.0 ? 18.0 1.5 G89312 CS2545 25.0 45.0 4.0 35.0 3.5 30.0 23.0 13o 1.8 G87351
