Position:Home>>Barras de carboneto de tungsténio

Barras de carboneto de tungsténio

Helical moagem tiras

Helical moagem tiras

Helical moagem tiras

Helical moagem tiras

Helical moagem tiras

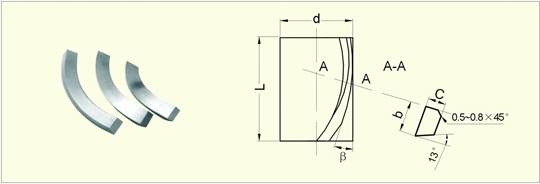

Helical milling strips

mm

Type	Helical angel	d	L	b	c
XL251632	25^o	16	32	4.0	2.6
XL252038		20	38	4.0	2.6
XL252545		25	45	4.5	2.8

XL302845	30^o	28	45	5.5	3.3
XL303053		30	53
XL303253		32
XL303653		36

XL304038	30^o	40	38	6.5	3.5
XL304063		40	63
XL304563		45	63
XL305075		50	75
XL306363		63	63
XL306300		63	80

XL dimens?o & tolerancia da faixa de moagem helicoidal

(mm)

Length of axie	L Tol.	βo Tol.	b Tol.	c Tol.
L≤40	+2.5~+5.5	±1^o	-0.10~+0.20	-0.10~+0.20
40	+3.0~+6.0		-0.15~+0.25	-0.15~+0.25
63	+3.5~+7.5		-0.15~+0.25	-0.15~+0.25
