Position:Home>>Wolfraamcarbide bars

Wolfraamcarbide bars

Helical frezen stroken

Helical frezen stroken

Helical frezen stroken

Helical frezen stroken

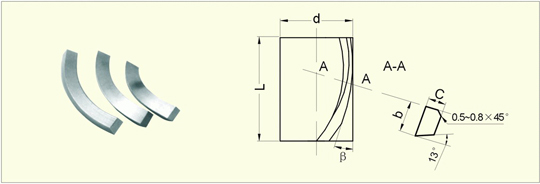

Helical milling strips

mm

Type	Helical angel	d	L	b	c
XL251632	25^o	16	32	4.0	2.6
XL252038		20	38	4.0	2.6
XL252545		25	45	4.5	2.8

XL302845	30^o	28	45	5.5	3.3
XL303053		30	53
XL303253		32
XL303653		36

XL304038	30^o	40	38	6.5	3.5
XL304063		40	63
XL304563		45	63
XL305075		50	75
XL306363		63	63
XL306300		63	80

Length of axie	L Tol.	βo Tol.	b Tol.	c Tol.
L≤40	+2.5~+5.5	±1^o	-0.10~+0.20	-0.10~+0.20
40	+3.0~+6.0		-0.15~+0.25	-0.15~+0.25
63	+3.5~+7.5		-0.15~+0.25	-0.15~+0.25
