Wolframkarbid barer

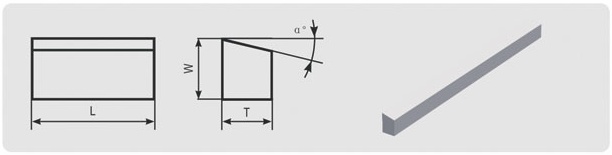

Wolframkarbid stripe med vinkel
|
||||
| Specification(mm) | Tolerance of Thickness(mm) | Tolerance of Width(mm) | Tolerance of Angle | Tolerance of Length(mm) |
|---|---|---|---|---|
| (1~2)x(2.5~6.0)~(0~35o) | +0.2~+0.5 | +0.2~+0.6 | -/+1o |
-/+1.0(L<100) -/+2.0(L>100) -/+5.0(L>300) |
| (2~3)x(3.0~8.0)~(0~35o) | ||||
| (3~4)x(3.0~20.0)~(0~35o) | ||||
| (4~5)x(4.0~30.0)~(0~35o) | ||||
| Grade |
Density(g/cm3) |
hardness(HRA) |
T.R.S(N/mm2) |
Application |
|
YL10.2 |
14.45 |
91.5 |
2880 |
Super comprehensive performances with a good performances to price rate, suitable for cutting fiber boards of a higher density and densified boards |
|
YM80 |
14.76 |
90.5 |
2590 |
Super comprehensive performances and easy to weld with a high performances to price rate, suitable for cutting soft and hard wood |
|
YG8 |
14.74 |
89.0 |
2710 |
Good for general purposes and easy to weld, suitable for cutting soft and hard wood |
|
YG6 |
14.95 |
89.5 |
2580 |
Good for general purposes and easy to weld, suitable for cutting soft and hard wood |
