Insertions de carbure de tungstène
Indexables Inserts Type 4V
Indexables Inserts Type 4V
Pour la fabrication de gauche droite &, tournant externes interne & et rabotage des outils avec décalage jarret
|
|
?
|
Type
|

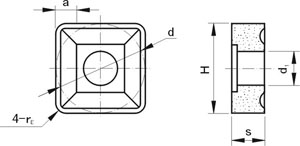

Dimension(mm)
|
Approx unit weight(g)
|
||||||||
|
d
|
s
|
r
|
a≈
|
d1
|
H
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
41005V
|
10.0
|
3.5
|
0.5
|
24.
|
4.2
|
10.0
|
4.4
|
4.3
|
3.6
|
3.2
|
|
41310V
|
13.0
|
4.5
|
1.0
|
3.4
|
5.2
|
13.0
|
9.3
|
9.1
|
7.8
|
6.9
|
|
41610V
|
16.0
|
5.5
|
1.0
|
4.4
|
6.2
|
16.0
|
17.3
|
17.0
|
15.1
|
13.4
|
|
41620V
|
16.0
|
5.5
|
2.0
|
4.4
|
6.2
|
16.0
|
16.9
|
16.6
|
14.5
|
12.9
|
|
41910V
|
19.0
|
7.0
|
1.0
|
5.4
|
7.2
|
19.0
|
31.0
|
30.5
|
26.9
|
23.9
|
|
41920V
|
19.0
|
7.0
|
2.0
|
5.4
|
7.2
|
19.0
|
30.5
|
30.1
|
26.7
|
23.9
|
