Insertos de carburo de tungsteno

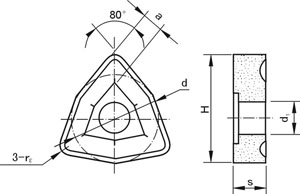

T3V de tipo insertos indexables
T3V de tipo insertos indexables
Para hacer interna & herramientas de torneado externo, aburrido de herramientas, herramientas de formación y herramientas de planeación
|
|
?
|
Type
|
Dimension(mm)
|
Approx unit weight(g)
|
||||||||
|
d
|
s
|
r
|
a≈
|
d1
|
H
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
T31005V
|
10.0
|
3.5
|
0.5
|
2.4
|
4.2
|
12.6
|
4.4
|
4.3
|
3.9
|
3.5
|
|
T31310V
|
13.0
|
4.5
|
1.0
|
3.4
|
5.2
|
16.1
|
9.5
|
9.4
|
8.3
|
7.3
|
|
T31610V
|
16.0
|
5.5
|
1.0
|
4.4
|
6.2
|
20.0
|
17.7
|
17.5
|
17.3
|
17.2
|
|
T31612V
|
16.0
|
5.5
|
2.0
|
4.4
|
6.2
|
19.5
|
18.3
|
18.0
|
13.6
|
13.2
|
|
T31920V
|
19.0
|
7.0
|
2.0
|
5.4
|
7.2
|
23.3
|
31.8
|
31.5
|
24.5
|
24.0
|
