Hartmetall-Einsätze

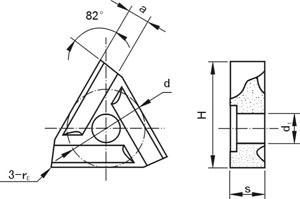

Wendeplatten Typ 3 C
Wendeplatten Typ 3 C
Für die Herstellung von linken & rechts, offset externe Drehwerkzeuge und langweilig Werkzeuge mit Schaft
|
|
?
|
Type
|
Dimension(mm)
|
Approx unit weight(g)
|
||||||||
|
d
|
s
|
r
|
a≈
|
d1
|
H
|
YG6
|
YG8
|
YT5
|
YT14
|
|
|
31003C
|
10.0
|
4.5
|
0.3
|
2.4
|
4.2
|
14.0
|
7.4
|
7.2
|
6.3
|
5.6
|
|
31003CL
|
||||||||||
|
31303C
|
13.0
|
5.5
|
0.3
|
3.4
|
5.2
|
18.2
|
15.3
|
15.1
|
13.0
|
11.5
|
|
31303CL
|
||||||||||
|
31603C
|
16.0
|
7.0
|
0.3
|
4.4
|
6.2
|
22.6
|
29.5
|
29.2
|
25.7
|
22.9
|
|
31603CL
|
||||||||||
|
31905C
|
19.0
|
8.5
|
0.5
|
5.4
|
7.2
|
26.0
|
49.5
|
49.0
|
43.0
|
38.2
|
|
31905CL
|
||||||||||
