Bande de carbure de tungstène
Bande de carbure de tungstène
1, Longueur : 10.0-500 mm, largeur : 3.0-40,0 mm
2, épaisseur : 2.0-6.0 mm
3, Densité : 14,0-14,9 g/cm3
4, Composition: Co WC, WC TiC TaC Co
5, Peuvent être con?us conformément aux exigences du client.

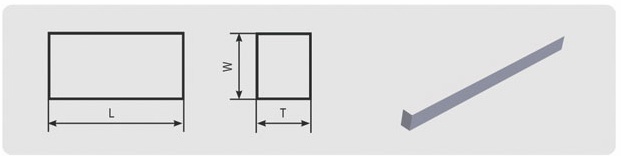

La spécification et la bande de carbure de tolérance de tungstène.
|
|||
| Specification(mm) | Tolerance of Thickness(mm) | Tolerance of Width(mm) | Tolerance of Length(mm) |
|---|---|---|---|
| 1x(2~5)xL |
+0.2~+0.5(T<7.0) +0.3~+0.6(T>7.0) |
+0.2~+0.6(W<30) +0.2~+0.8(W>30) |
-/+1.0(L<100) -/+2.0(L>100) -/+5.0(L>200) |
| 1.5x(2~10)xL | |||
| 2.0x(3~15)xL | |||
| 2.5x(2.5~20)xL | |||
| 3.0x(3.0~20)xL | |||
| 3.5x(3.5~25)xL | |||
| 4.0x(4.0~30)xL | |||
| 5.0x(4.0~40)xL | |||
| 6.0x(5.0~40)xL | |||
| (7~20)x(7.0~40)xL | |||
Catégories recommandées pour la bande de carbure de tungstène
| Grade |
Density(g/cm3) |
hardness(HRA) |
T.R.S(N/mm2) |
Application |
|
YL10.2 |
14.45 |
91.5 |
2880 |
Super comprehensive performances with a good performances to price rate, suitable for cutting fiber boards of a higher density and densified boards |
|
YM80 |
14.76 |
90.5 |
2590 |
Super comprehensive performances and easy to weld with a high performances to price rate, suitable for cutting soft and hard wood |
|
YG8 |
14.74 |
89.0 |
2710 |
Good for general purposes and easy to weld, suitable for cutting soft and hard wood |
|
YG6 |
14.95 |
89.5 |
2580 |
Good for general purposes and easy to weld, suitable for cutting soft and hard wood |
